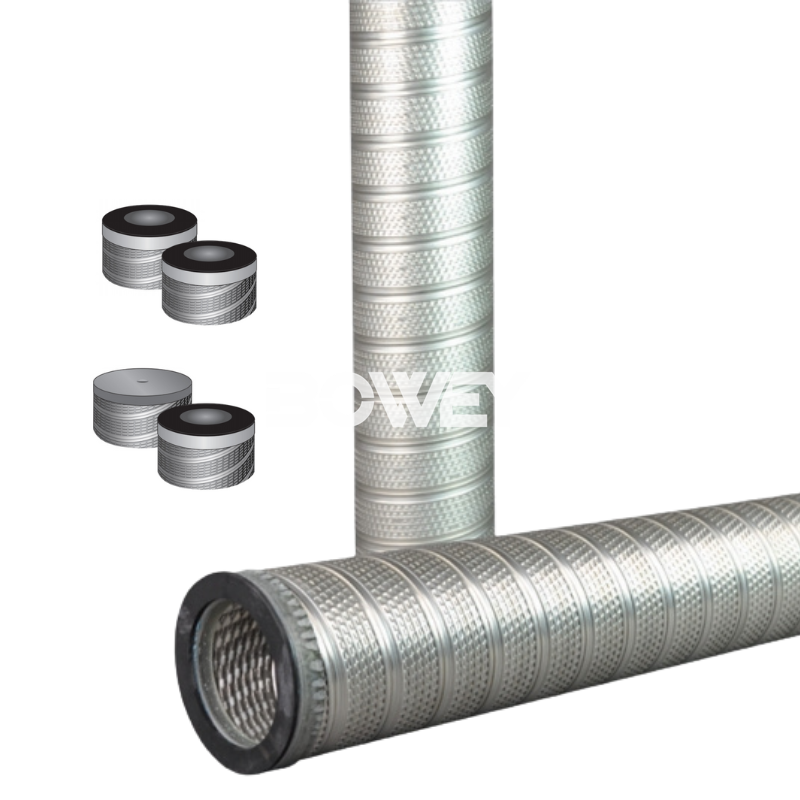

PSFG-324-M1C-01EB Bowey Replaces Peco PSFG Series Pleated Dry Gas Coalescing Filter Element
Bowey filters provide excellent removal of solid and rigid contaminants from dry natural gas streams. Their absolute ratings prevent particles from entering critical equipment without the worry of tearing, swelling, shedding or unloading. The optimized pleat design provides a larger surface area where contaminants can accumulate and build up over time, resulting in high dirt holding capacity and extended service life.
Optimized Surface Area for High Contaminant Removal. Bowey uses an optimized pleat design to provide a larger surface area for contaminant removal. Rigid solid particles form a filter cake on the upstream side of the pleats. As the filter cake accumulates, it begins to participate in filtration and improves removal efficiency over time. The permeability of the filter cake determines the service life of the filter.
|
Materials
|
|
Media
|
Pleated - Polyester, Polypropylene or Fiberglass
|
|
Core
|
Plated Steel
|
|
End caps
|
Plated Steel
|
|
Seals
|
Buna-N, Viton
|
|
Operating data
|
|
Flow direction
|
Outside-to-Inside
|
|
Max. Temp.
|
115ºC for Polyester
|
|
82ºC for Polypropylene
|
|
115ºC for fiber glass
|
|
Recommended change-out
|
|
Differential pressure
|
12–15 psi / 0.8–1.0 bar
|
|
|
|
Nominal dimensions
|
|
Size
|
O.D.
|
I.D.
|
Length
|
|
PSFG-324
|
4.5” / 114mm
|
3.24” / 82mm
|
24” / 610mm
|
|
PSFG-336
|
4.5” / 114mm
|
3.24” / 82mm
|
36” / 914mm
|
|
PSFG-536
|
5.7” / 157mm
|
4.18” / 106mm
|
36'' / 914mm
|
|
PSFG-636
|
6.0” / 152mm
|
4.15” / 105mm
|
36'' / 914mm
|

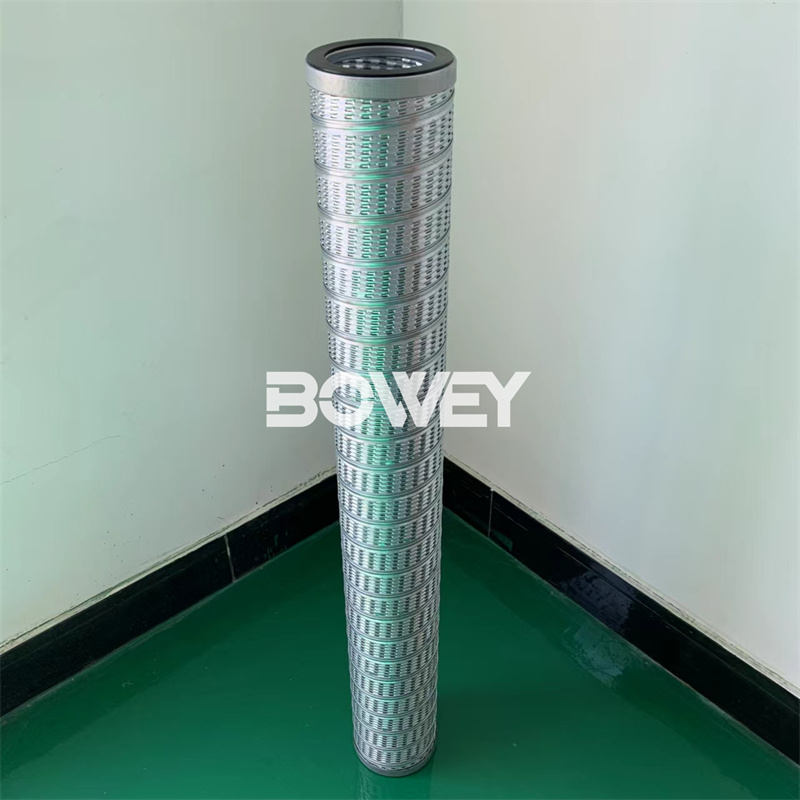

Bowey on-site picture
Extended models
|
PSFG-324-M1C-00EB
PSFG-324-M1C-00EB-CE
PSFG-324-M1C-00EV
PSFG-324-M1C-00EV-CE
PSFG-324-M1C-00LB
PSFG-324-M1C-00LB-CE
PSFG-324-M1C-00LV
PSFG-324-M1C-00LV-CE
PSFG-324-M1C-00GB
PSFG-324-M1C-00GB-CE
PSFG-324-M1C-00GV
PSFG-324-M1C-00GV-CE
|
PSFG-324-M1C-01EB
PSFG-324-M1C-01EB-CE
PSFG-324-M1C-01EV
PSFG-324-M1C-01EV-CE
PSFG-324-M1C-01LB
PSFG-324-M1C-01LB-CE
PSFG-324-M1C-01LV
PSFG-324-M1C-01LV-CE
PSFG-324-M1C-01GB
PSFG-324-M1C-01GB-CE
PSFG-324-M1C-01GV
PSFG-324-M1C-01GV-CE
|
PSFG-324-M1C-05EB
PSFG-324-M1C-05EB-CE
PSFG-324-M1C-05EV
PSFG-324-M1C-05EV-CE
PSFG-324-M1C-05LB
PSFG-324-M1C-05LB-CE
PSFG-324-M1C-05LV
PSFG-324-M1C-05LV-CE
PSFG-324-M1C-05GB
PSFG-324-M1C-05GB-CE
PSFG-324-M1C-05GV
PSFG-324-M1C-05GV-CE
|
PSFG-324-M1C-10EB
PSFG-324-M1C-10EB-CE
PSFG-324-M1C-10EV
PSFG-324-M1C-10EV-CE
PSFG-324-M1C-10LB
PSFG-324-M1C-10LB-CE
PSFG-324-M1C-10LV
PSFG-324-M1C-10LV-CE
PSFG-324-M1C-10GB
PSFG-324-M1C-10GB-CE
PSFG-324-M1C-10GV
PSFG-324-M1C-10GV-CE
|
|
PSFG-324-M1C-20EB
PSFG-324-M1C-20EB-CE
PSFG-324-M1C-20EV
PSFG-324-M1C-20EV-CE
PSFG-324-M1C-20LB
PSFG-324-M1C-20LB-CE
PSFG-324-M1C-20LV
PSFG-324-M1C-20LV-CE
PSFG-324-M1C-20GB
PSFG-324-M1C-20GB-CE
PSFG-324-M1C-20GV
PSFG-324-M1C-20GV-CE
|
PSFG-324-M1C-50EB
PSFG-324-M1C-50EB-CE
PSFG-324-M1C-50EV
PSFG-324-M1C-50EV-CE
PSFG-324-M1C-50LB
PSFG-324-M1C-50LB-CE
PSFG-324-M1C-50LV
PSFG-324-M1C-50LV-CE
PSFG-324-M1C-50GB
PSFG-324-M1C-50GB-CE
PSFG-324-M1C-50GV
PSFG-324-M1C-50GV-CE
|
PSFG-336-M1C-00EB
PSFG-336-M1C-00EB-CE
PSFG-336-M1C-00EV
PSFG-336-M1C-00EV-CE
PSFG-336-M1C-00LB
PSFG-336-M1C-00LB-CE
PSFG-336-M1C-00LV
PSFG-336-M1C-00LV-CE
PSFG-336-M1C-00GB
PSFG-336-M1C-00GB-CE
PSFG-336-M1C-00GV
PSFG-336-M1C-00GV-CE
|
PSFG-336-M1C-01EB
PSFG-336-M1C-01EB-CE
PSFG-336-M1C-01EV
PSFG-336-M1C-01EV-CE
PSFG-336-M1C-01LB
PSFG-336-M1C-01LB-CE
PSFG-336-M1C-01LV
PSFG-336-M1C-01LV-CE
PSFG-336-M1C-01GB
PSFG-336-M1C-01GB-CE
PSFG-336-M1C-01GV
PSFG-336-M1C-01GV-CE
|
|
PSFG-336-M1C-05EB
PSFG-336-M1C-05EB-CE
PSFG-336-M1C-05EV
PSFG-336-M1C-05EV-CE
PSFG-336-M1C-05LB
PSFG-336-M1C-05LB-CE
PSFG-336-M1C-05LV
PSFG-336-M1C-05LV-CE
PSFG-336-M1C-05GB
PSFG-336-M1C-05GB-CE
PSFG-336-M1C-05GV
PSFG-336-M1C-05GV-CE
|
PSFG-336-M1C-10EB
PSFG-336-M1C-10EB-CE
PSFG-336-M1C-10EV
PSFG-336-M1C-10EV-CE
PSFG-336-M1C-10LB
PSFG-336-M1C-10LB-CE
PSFG-336-M1C-10LV
PSFG-336-M1C-10LV-CE
PSFG-336-M1C-10GB
PSFG-336-M1C-10GB-CE
PSFG-336-M1C-10GV
PSFG-336-M1C-10GV-CE
|
PSFG-336-M1C-20EB
PSFG-336-M1C-20EB-CE
PSFG-336-M1C-20EV
PSFG-336-M1C-20EV-CE
PSFG-336-M1C-20LB
PSFG-336-M1C-20LB-CE
PSFG-336-M1C-20LV
PSFG-336-M1C-20LV-CE
PSFG-336-M1C-20GB
PSFG-336-M1C-20GB-CE
PSFG-336-M1C-20GV
PSFG-336-M1C-20GV-CE
|
PSFG-336-M1C-50EB
PSFG-336-M1C-50EB-CE
PSFG-336-M1C-50EV
PSFG-336-M1C-50EV-CE
PSFG-336-M1C-50LB
PSFG-336-M1C-50LB-CE
PSFG-336-M1C-50LV
PSFG-336-M1C-50LV-CE
PSFG-336-M1C-50GB
PSFG-336-M1C-50GB-CE
PSFG-336-M1C-50GV
PSFG-336-M1C-50GV-CE
|
|
PSFG-536-M1C-00EB
PSFG-536-M1C-00EB-CE
PSFG-536-M1C-00EV
PSFG-536-M1C-00EV-CE
PSFG-536-M1C-00LB
PSFG-536-M1C-00LB-CE
PSFG-536-M1C-00LV
PSFG-536-M1C-00LV-CE
PSFG-536-M1C-00GB
PSFG-536-M1C-00GB-CE
PSFG-536-M1C-00GV
PSFG-536-M1C-00GV-CE
|
FG-536-M1C-10EB
PSFG-536-M1C-10EB-CE
PSFG-536-M1C-10EV
PSFG-536-M1C-10EV-CE
PSFG-536-M1C-10LB
PSFG-536-M1C-10LB-CE
PSFG-536-M1C-10LV
PSFG-536-M1C-10LV-CE
PSFG-536-M1C-10GB
PSFG-536-M1C-10GB-CE
PSFG-536-M1C-10GV
PSFG-536-M1C-10GV-CE
|
PSFG-536-M1C-05EB
PSFG-536-M1C-05EB-CE
PSFG-536-M1C-05EV
PSFG-536-M1C-05EV-CE
PSFG-536-M1C-05LB
PSFG-536-M1C-05LB-CE
PSFG-536-M1C-05LV
PSFG-536-M1C-05LV-CE
PSFG-536-M1C-05GB
PSFG-536-M1C-05GB-CE
PSFG-536-M1C-05GV
PSFG-536-M1C-05GV-CE
|
PSFG-536-M1C-01EB
PSFG-536-M1C-01EB-CE
PSFG-536-M1C-01EV
PSFG-536-M1C-01EV-CE
PSFG-536-M1C-01LB
PSFG-536-M1C-01LB-CE
PSFG-536-M1C-01LV
PSFG-536-M1C-01LV-CE
PSFG-536-M1C-01GB
PSFG-536-M1C-01GB-CE
PSFG-536-M1C-01GV
PSFG-536-M1C-01GV-CE
|
|
PSFG-536-M1C-20EB
PSFG-536-M1C-20EB-CE
PSFG-536-M1C-20EV
PSFG-536-M1C-20EV-CE
PSFG-536-M1C-20LB
PSFG-536-M1C-20LB-CE
PSFG-536-M1C-20LV
PSFG-536-M1C-20LV-CE
PSFG-536-M1C-20GB
PSFG-536-M1C-20GB-CE
PSFG-536-M1C-20GV
PSFG-536-M1C-20GV-CE
|
PSFG-536-M1C-50EB
PSFG-536-M1C-50EB-CE
PSFG-536-M1C-50EV
PSFG-536-M1C-50EV-CE
PSFG-536-M1C-50LB
PSFG-536-M1C-50LB-CE
PSFG-536-M1C-50LV
PSFG-536-M1C-50LV-CE
PSFG-536-M1C-50GB
PSFG-536-M1C-50GB-CE
PSFG-536-M1C-50GV
PSFG-536-M1C-50GV-CE
|
PSFG-636-M1C-00EB
PSFG-636-M1C-00EB-CE
PSFG-636-M1C-00EV
PSFG-636-M1C-00EV-CE
PSFG-636-M1C-00LB
PSFG-636-M1C-00LB-CE
PSFG-636-M1C-00LV
PSFG-636-M1C-00LV-CE
PSFG-636-M1C-00GB
PSFG-636-M1C-00GB-CE
PSFG-636-M1C-00GV
PSFG-636-M1C-00GV-CE
|
PSFG-636-M1C-01EB
PSFG-636-M1C-01EB-CE
PSFG-636-M1C-01EV
PSFG-636-M1C-01EV-CE
PSFG-636-M1C-01LB
PSFG-636-M1C-01LB-CE
PSFG-636-M1C-01LV
PSFG-636-M1C-01LV-CE
PSFG-636-M1C-01GB
PSFG-636-M1C-01GB-CE
PSFG-636-M1C-01GV
PSFG-636-M1C-01GV-CE
|
|
PSFG-636-M1C-05EB
PSFG-636-M1C-05EB-CE
PSFG-636-M1C-05EV
PSFG-636-M1C-05EV-CE
PSFG-636-M1C-05LB
PSFG-636-M1C-05LB-CE
PSFG-636-M1C-05LV
PSFG-636-M1C-05LV-CE
PSFG-636-M1C-05GB
PSFG-636-M1C-05GB-CE
PSFG-636-M1C-05GV
PSFG-636-M1C-05GV-CE
|
PSFG-636-M1C-50EB
PSFG-636-M1C-50EB-CE
PSFG-636-M1C-50EV
PSFG-636-M1C-50EV-CE
PSFG-636-M1C-50LB
PSFG-636-M1C-50LB-CE
PSFG-636-M1C-50LV
PSFG-636-M1C-50LV-CE
PSFG-636-M1C-50GB
PSFG-636-M1C-50GB-CE
PSFG-636-M1C-50GV
PSFG-636-M1C-50GV-CE
|
PSFG-636-M1C-20EB
PSFG-636-M1C-20EB-CE
PSFG-636-M1C-20EV
PSFG-636-M1C-20EV-CE
PSFG-636-M1C-20LB
PSFG-636-M1C-20LB-CE
PSFG-636-M1C-20LV
PSFG-636-M1C-20LV-CE
PSFG-636-M1C-20GB
PSFG-636-M1C-20GB-CE
PSFG-636-M1C-20GV
PSFG-636-M1C-20GV-CE
|
PSFG-636-M1C-10EB
PSFG-636-M1C-10EB-CE
PSFG-636-M1C-10EV
PSFG-636-M1C-10EV-CE
PSFG-636-M1C-10LB
PSFG-636-M1C-10LB-CE
PSFG-636-M1C-10LV
PSFG-636-M1C-10LV-CE
PSFG-636-M1C-10GB
PSFG-636-M1C-10GB-CE
PSFG-636-M1C-10GV
PSFG-636-M1C-10GV-CE
|
If you are interested in Boweyfilter products, please contact us here.
