Name: PCHG-18 Bowey Replaces Parker Peco Facet Coalescence Filter Element PCHG Series
Brand: BoweyFilter
SKU: PCHG-18
Availability: InStock
Rating: 5 (1 reviews)

PCHG-18 Bowey Replaces Parker Peco Facet Coalescence Filter Element PCHG Series

Description FAQ Review

Description

PCHG-18 Bowey Replaces Parker Peco Facet Coalescence Filter Element PCHG Series

Bowey PCHG Series filter elements are ideal for removing deformable and shear sensitive contaminants from natural gas streams. The elements are designed to fit PECO 75 Series and 85 Series vessels, as well as a variety of competitor filter separator vessels. Their synthetic construction makes them an environmentally friendly product and an excellent upgrade to traditional fiberglass filter elements.

Bowey PCHG Series filter elements provide increased flow, improved efficiency, and effective contaminant removal. This means longer life, fewer replacements, less maintenance, and lower costs. Bowey's unique manufacturing process is used to create unique depth filter elements. Engineered filter media is thermally bonded, spirally layered to fit and overlap the previous layer, creating a tapered spiral structure. This filter structure creates a gradient density pattern that provides excellent flow paths in the radial, axial, and spiral directions. This tortuous flow path allows for high contaminant loading, high structural strength, maximum efficiency, and superior overall filtration performance.

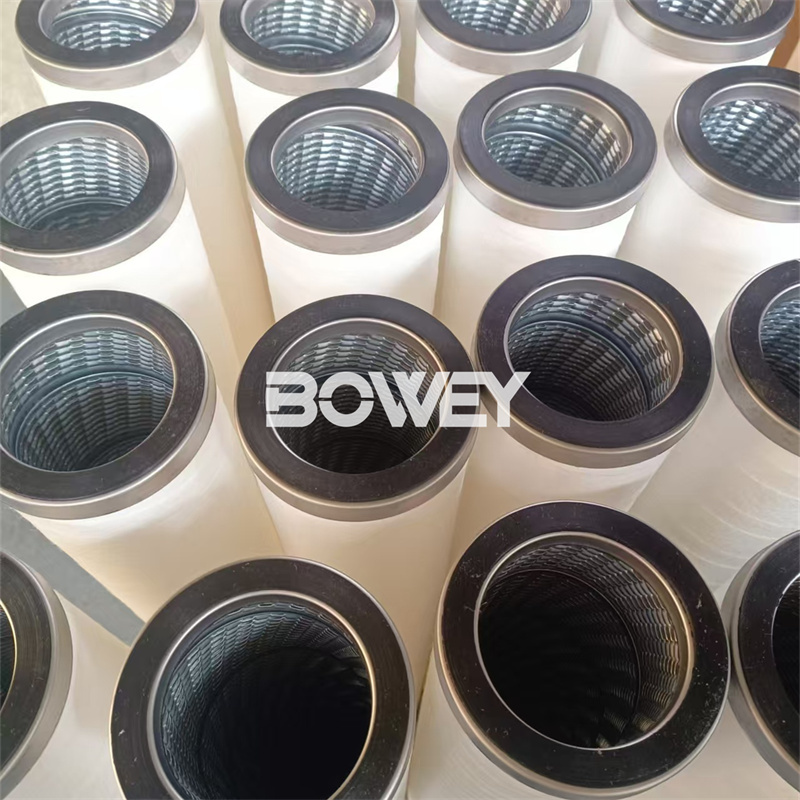

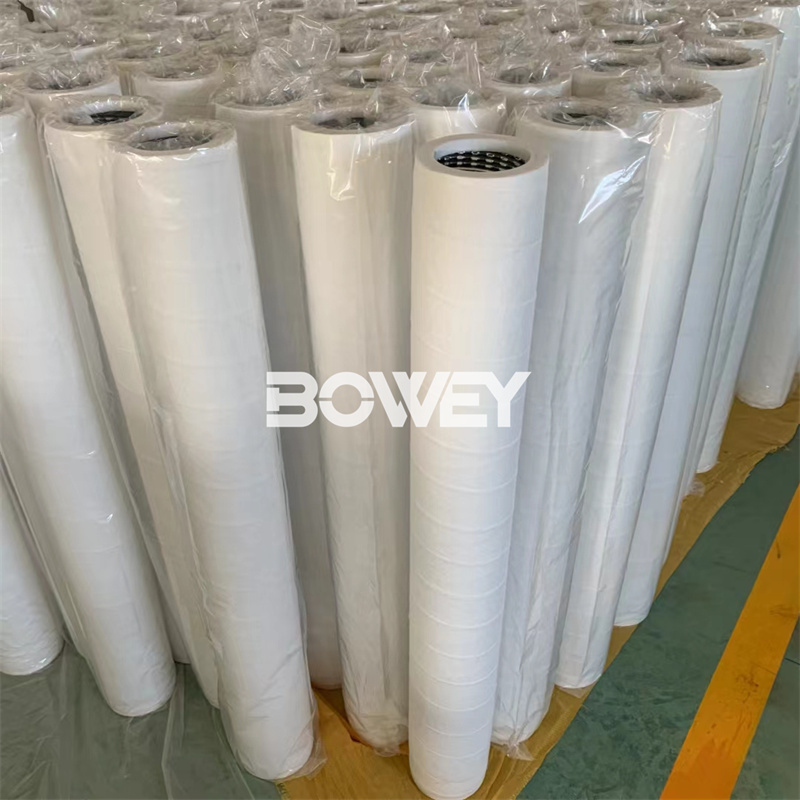

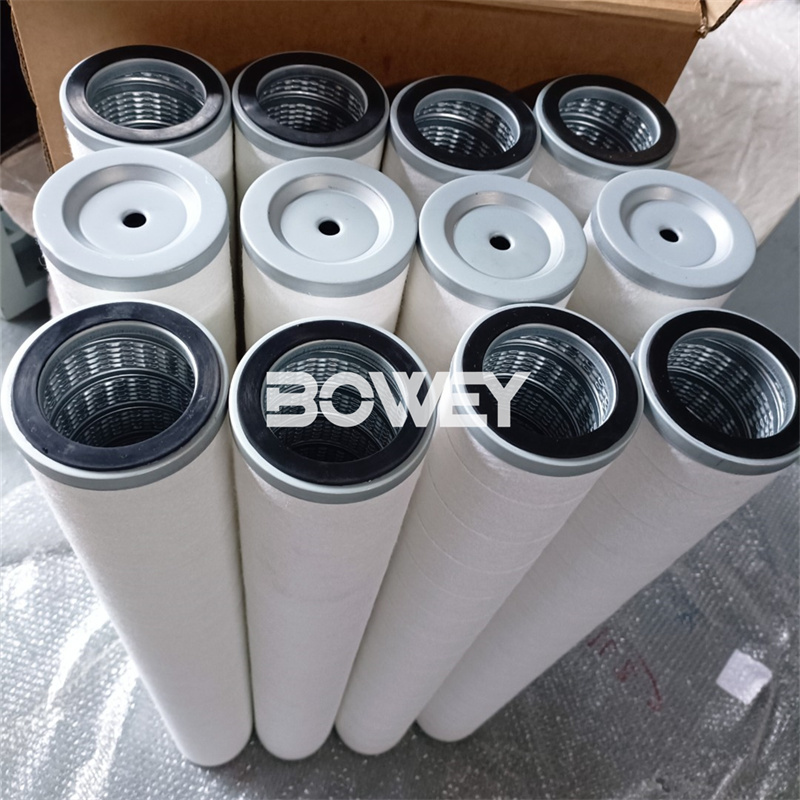

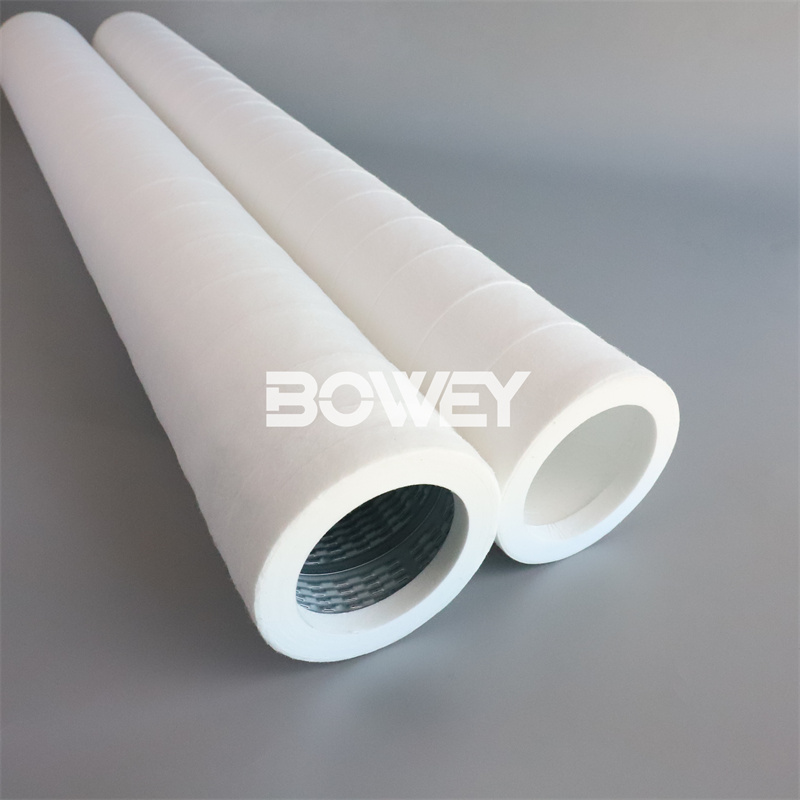

Bowey on-site picture

Materials
Media	Polyester or Polypropylene
Core	Plated Steel (if required)
End caps	Integral End Caps (Standard – No Gasket Seal Required) Plated Steel (Optional)
Seals	None (Standard), Buna-N, EPDM, Viton
Operating data
Flow direction	Outside-to-Inside
Max. Temp.	Polypropylene 180ºF / 82ºC
	Polyester 240ºF / 116ºC
Max. differential pressure
3.0'' OD	25 psid (no core) / 1.7 bar (no core)
	50 psid (with core) / 3.4 bar (with core)
4.5'' OD	25 psid (no core) / 1.7 bar (no core)
	50 psid (with core) / 3.4 bar (with core)
5.5'' OD	35 psid (with core) / 2.4 bar (with core)
Recommended change-out
Differential pressure	12–15 psi / 0.8–1.0 bar
Max. pressure may be limited by housing manufacturer’s design

Nominal dimensions
Size		O.D.	I.D.	Length
12		3'' / 76mm	2.1'' / 54mm	12'' / 305mm
24		3'' / 76mm	2.1'' / 54mm	24'' / 610mm
36		3'' / 76mm	2.1'' / 54mm	36'' / 914mm
72		3'' / 76mm	2.1'' / 54mm	72'' / 1829mm
312		4.5'' / 114mm	3.1'' / 79mm	3.1'' / 79mm
318		4.5'' / 114mm	3.1'' / 79mm	18'' / 458mm
324		4.5'' / 114mm	3.1'' / 79mm	24'' / 610mm
336		4.5'' / 114mm	3.1'' / 79mm	36'' / 914mm
372		4.5'' / 114mm	3.1'' / 79mm	72'' / 1829mm
536		5.5'' / 140mm	4.25'' / 108mm	36'' / 914mm
572		5.5'' / 140mm	4.25'' / 108mm	72'' / 1829mm

Extended models

PCHG-12	PCHG-24	PCHG-36	PCHG-72	PCHG-312
PCHG-318	PCHG-324	PCHG-336	PCHG-372	PCHG-536
PCHG-572	PSFG-324	PSFG-336	PSFG-536	PSFG-636
FG-12	FG-24	FG-36	FG-72	FG-312
FG-324	FG-336	FG-372	FG-536	FG-572
AFVG12	AFVG18	AFVG24	AFVG36	PS-5519-5
PS-559-2	PS-559-5	PS-559-10	PS-559-20	PS-5519-2
PS-5519-10	PS-5519-20	PS-819-2	PS-819-5	PS-819-10
PS-819-20	JPMG-318-R	JPMG-336-R	JPMG-536-R	JPMG-30226
