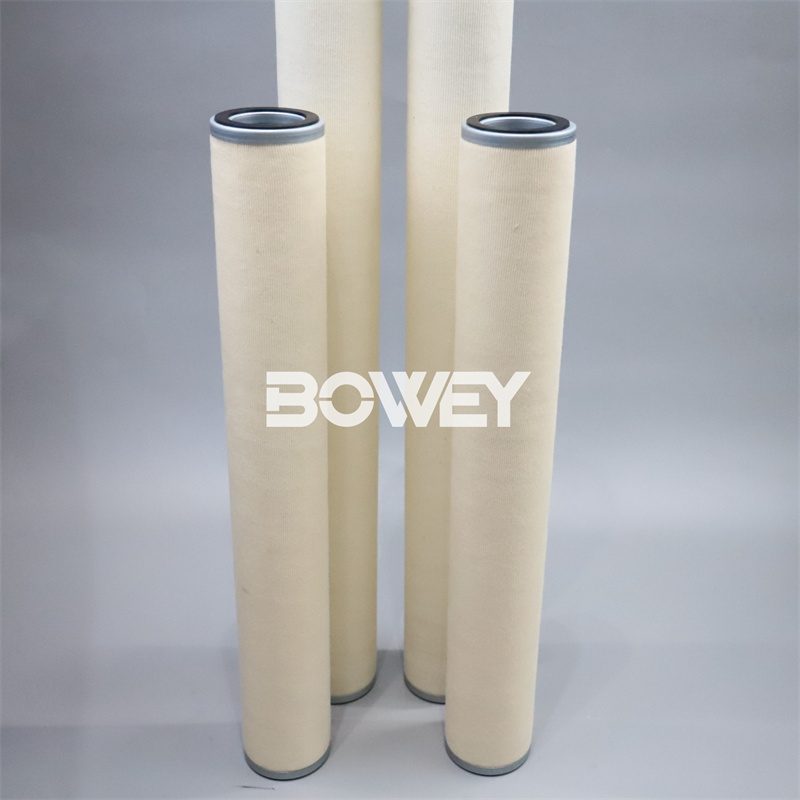

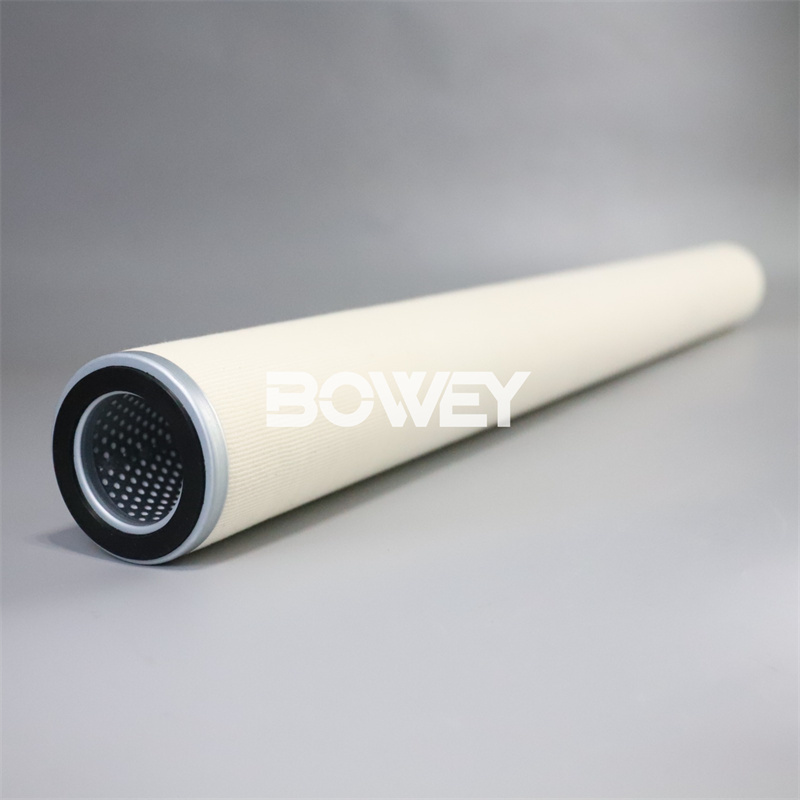

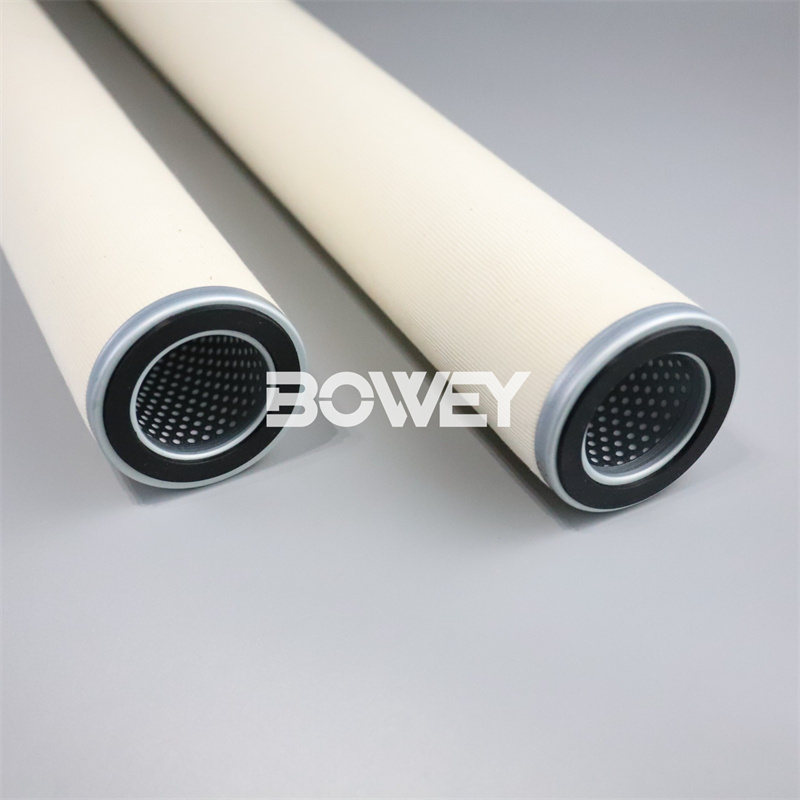

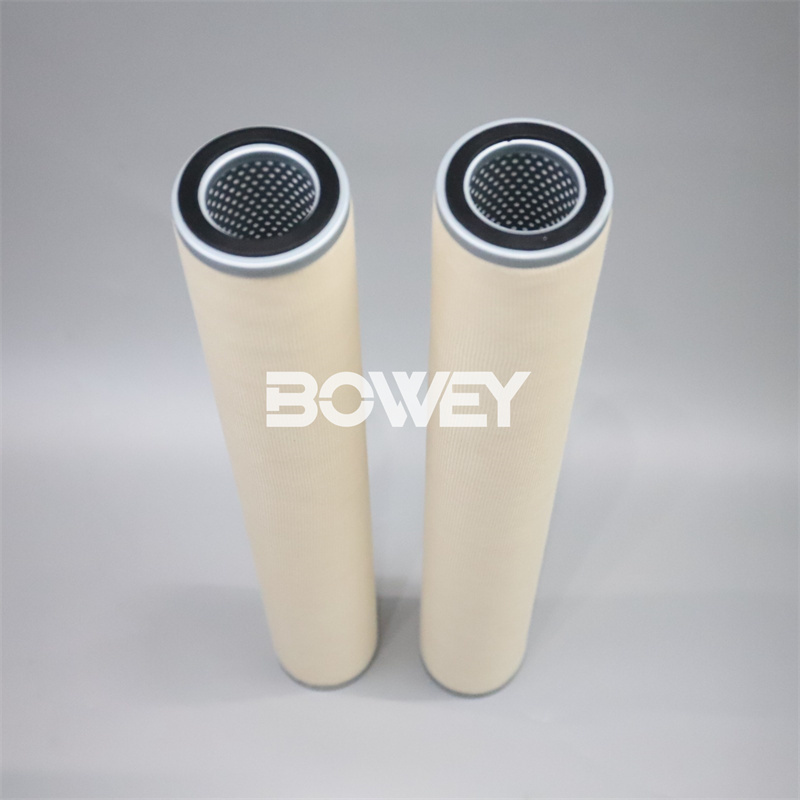

Name: FG-572 Bowey Replaces Peco Facet Fiber Glass Depth Style Gas Filter - Separator Cartridges
Brand: BoweyFilter
SKU: FG-572
Availability: InStock
Rating: 5 (1 reviews)

FG-572 Bowey Replaces Peco Facet Fiber Glass Depth Style Gas Filter - Separator Cartridges

Description FAQ Review

Description

FG-572 Bowey Replaces Peco Facet Fiber Glass Depth Style Gas Filter - Separator Cartridges

Bowey FG Series filter elements remove contaminants from natural gas streams. They can be used in PECO 75 Series and 85 Series vessels, as well as a variety of competitor filter separator vessels. The FG Series is constructed with fiberglass media. The standard configuration features open end caps that are sealed with reusable dimple gaskets. Also available are closed end caps with bolt holes that eliminate the need for dimple gaskets.

Bowey manufactures unique depth filter elements. Spiral layers of engineered filter media are applied to the element through thermal bonding so that they fit and overlap the previous layer, forming a tapered spiral structure. This filter structure forms a gradient density pattern that provides excellent flow path in radial, axial and spiral directions. This tortuous flow path allows for high contaminant loading, structural strength, maximum efficiency and excellent overall filtration performance.

Features

Fully synthetic material options - environmentally friendly

Unique spiral flow path and depth matrix - effective contaminant removal

Higher efficiency - cleaner gas emissions

Longer service life - less replacement, maintenance and operation, saving time and money

Materials
Media	Fiber glass
Core	Plated Steel
End caps	Plated Steel
Seals	Buna-N, Viton
Operating data
Flow direction	Outside-to-Inside
Max. Temp.	135ºC
Max. differential pressure
3.0'' OD	120 psid / 8.3 bar
4.5'' OD	50 psid / 3.4 bar
5.5'' OD	35 psid / 2.4 bar
Recommended change-out
Differential pressure	12–15 psi / 0.8–1.0 bar

Bowey on-site picture

Nominal dimensions
Size	O.D.	I.D.	Length
12	3.3'' / 84mm	2.1'' / 53mm	12'' / 305mm
24	3.3'' / 84mm	2.1'' / 53mm	24'' / 610mm
36	3.3'' / 84mm	2.1'' / 53mm	36'' / 914mm
72	3.3'' / 84mm	2.1'' / 53mm	72'' / 1829mm
312	4.5'' / 114mm	3.24'' / 82mm	12'' / 305mm
324	4.5'' / 114mm	3.24'' / 82mm	24'' / 610mm
336	4.5'' / 114mm	3.24'' / 82mm	36'' / 914mm
372	4.5'' / 114mm	3.24'' / 82mm	72'' / 1829mm
536	5.5'' / 140mm	4.18'' / 106mm	36'' / 914mm
572	5.5'' / 140mm	4.18'' / 106mm	72'' / 1829mm

Extended models

PCHG-12	PCHG-24	PCHG-36	PCHG-72	PCHG-312
PCHG-318	PCHG-324	PCHG-336	PCHG-372	PCHG-536
PCHG-572	PSFG-324	PSFG-336	PSFG-536	PSFG-636
FG-12	FG-24	FG-36	FG-72	FG-312
FG-324	FG-336	FG-372	FG-536	FG-572
AFVG12	AFVG18	AFVG24	AFVG36	PS-5519-5
PS-559-2	PS-559-5	PS-559-10	PS-559-20	PS-5519-2
PS-5519-10	PS-5519-20	PS-819-2	PS-819-5	PS-819-10
PS-819-20	JPMG-318-R	JPMG-336-R	JPMG-536-R	JPMG-30226

If you are interested in Boweyfilter products, please contact us here.
