Bowey High-Viscosity Filter Carts GLYC-160

Item No.: GLYC-160
Sale: 0
Quantity
-
+
(0 In Stock)
Description FAQ Review
Description

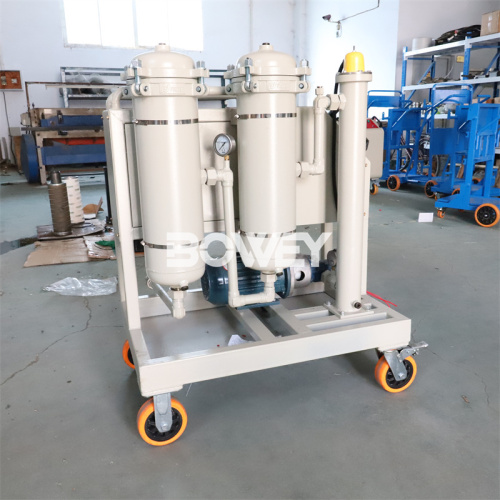

Bowey High-Viscosity Filter Carts GLYC-160



Applications

● Filtration of high viscosity lubricating oil

 Adding high viscosity lubricating oil

 Bypass filtration when working with high viscosity lubricating oil system

Product performance

1. The oil purifier adopts a special pump for high viscosity oil, which conveys the fluid smoothly, without pulsation, low noise and vibration.

Small, with strong self-priming ability.

2. It can filter a variety of corrosive media, especially suitable for filling and filtration of high viscosity oil.

3. Optional heating function, when the temperature is too low or the viscosity of the oil is too large, the heater can be started to feed the oil.

Line heating, the highest temperature can reach 120*C.

4. The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

5. Adopt thermal relay protection to prevent motor damage caused by motor overload.

6. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.

7. The fine filter can choose different precision according to the different needs of users to provide the system with better

Protect.

8. The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools.

9. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.

Technical Data

Model

GLYC-25-*/**

GLYC-40-*/**

GLYC-50-*/**

GLYC-63-*/**

GLYC-100-*/**

GLYC-160-*/**

Rated flow L/min

25

40

50

63

100

160

Operating Tem.℃

5-100

Recommended viscosity CSt

100-760

Rated pressure Mpa

1.0

Initial pressure loss Mpa

≤0.02

First-class

Accuracy μm

100

Second-class Accuracy μm

102030

Third-class

Accuracy μm

3510,  20,  40

Voltage V

AC380V (three phase) 50Hz

Motor Power Kw

1.1

1.2

3.0

3.0

4.0

5.5

Weight Kg

160

240

400

265

400
